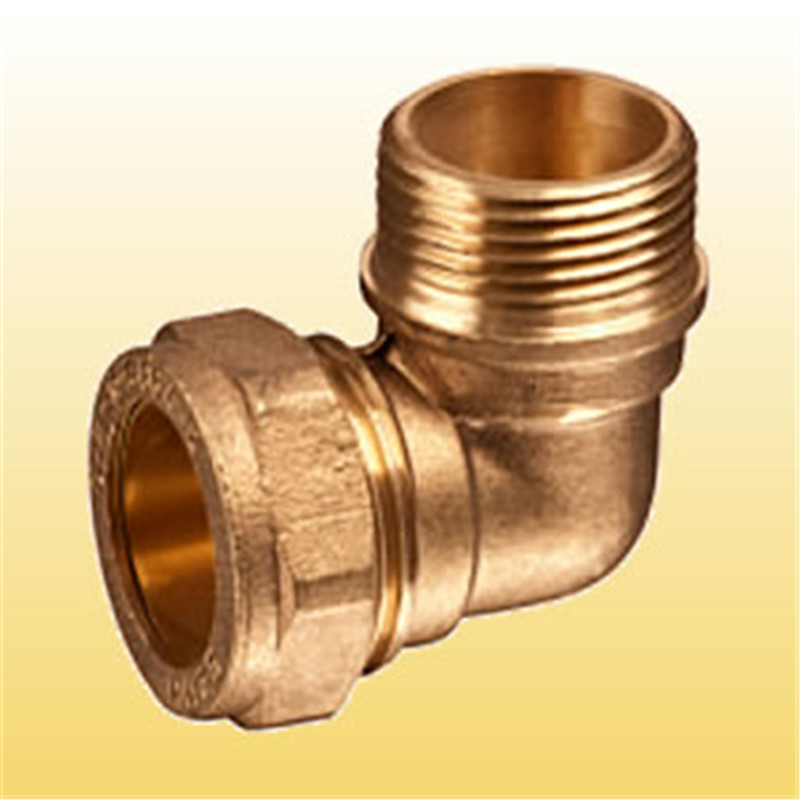

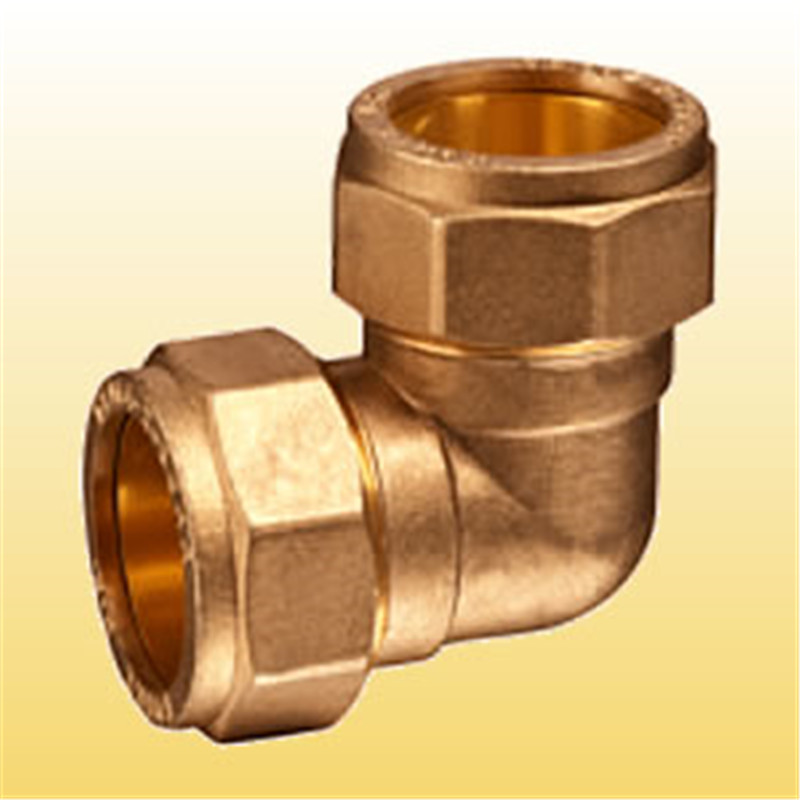

Compression Fitting for Copper Pipe

Item no 22005

Description:

1. Brass fittings ,Compression fittings, Copper Pipe fittings ,

2.Executive Standard EN1254-2. Thread Standard according to ISO228-1

3.For use with copper tube connecting and used extensively for residential and   commercial-grade water supplying

4.DZR Brass Material CZ132-BS6017/CW602N-EN12164 comply to Dezincification   Resistant Test defined by ISO 6509 and AS2345

5.Working Pressure Max 16 Bar under 120°C

6.Working Temperature Max 120°C

7.Material : Brass can be CuZn39Pb3,CW602N,CZ122,C37710,CW614N,CW617N,DZR BRASS, etc.,

8.Surface: Brass Colour ,Nickle Plated ,Chrome Plated

9.Size  :8mm ,12mm ,15mm ,22mm ,28mm ,35mm ,42mm ,54mm ,63mm

Testing : Material Testing ,Hardness Testing ,Pressure Testing

10.Samples Time

1) 2 days - For our existing samples for reference
2) 7 days - If new sample, need make the new mold

11.Production Capacity :3000,000 pcs each month, 200metric tons

12.Packing Details : Standard packing ,color cartons,pallets

13.Payment Term:T/T ,L/C,

14.Delivery Time: 35 days after confirming the order

15.Minimum Order Quantity : 5000 Pieces

16.Inspection: Each cargo will be inspected before shipping. The third-party inspection company is acceptable. Like SGS, ASIA inspection, etc.

17.OEM Acceptable

For further information, please feel free to contact me.

Email:sales at fenilo.com
